01

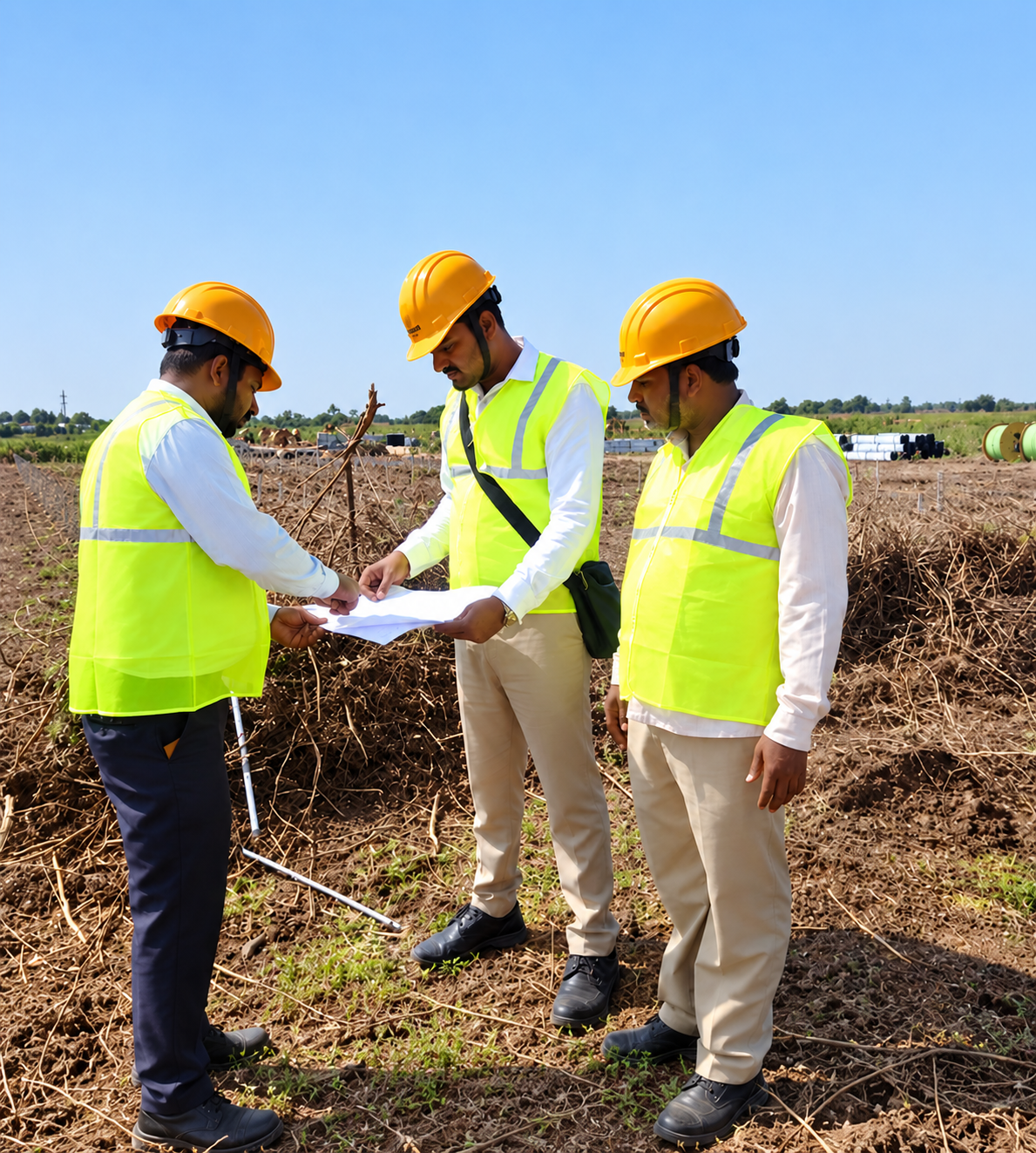

Land Plan
Site planning establishes the arrangement of the solar field and supporting infrastructure across the available project land.
Solar Infrastructure
Solar Ground Mounted Work System
Complete ground-mounted solar infrastructure covering site planning, generation systems, electrical rooms, high-voltage equipment and supporting structures.
Ground MountedSolar Infrastructure
Ground mounted systems & infrastructure
Each area below represents an important part of the ground-mounted work system.
02

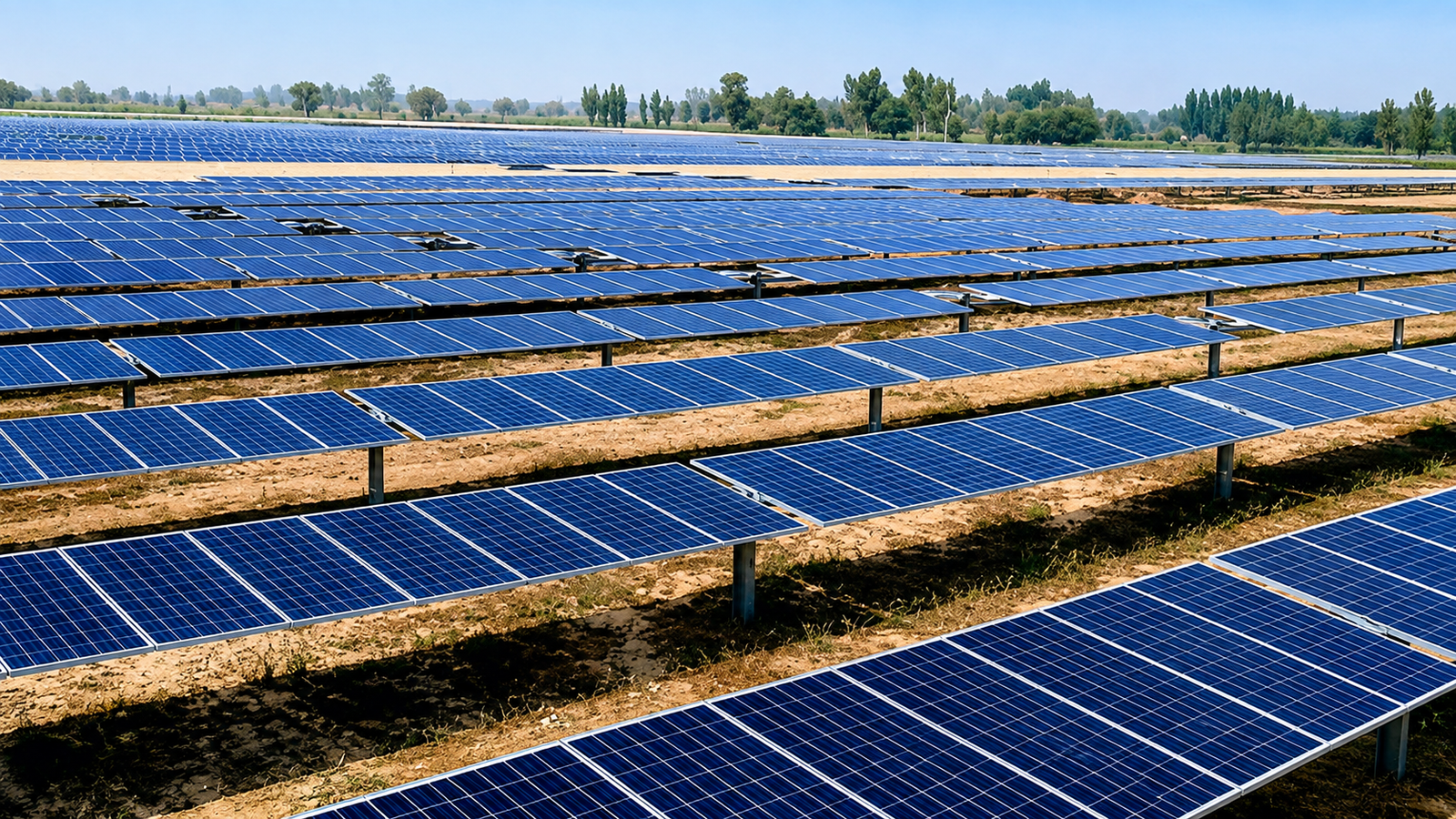

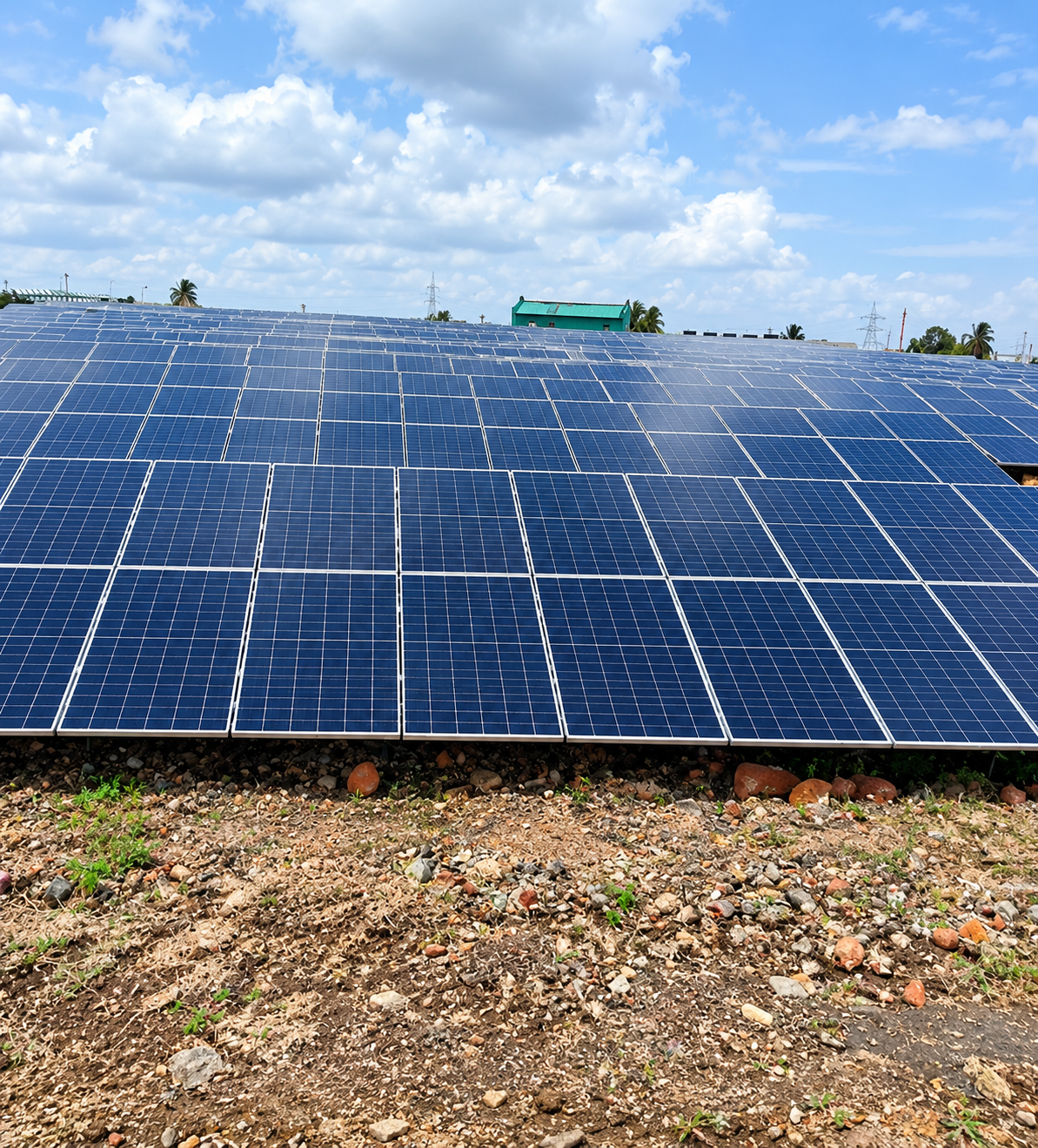

Solar Plant
The central generation area where photovoltaic modules are arranged as the primary solar power-producing system.
03

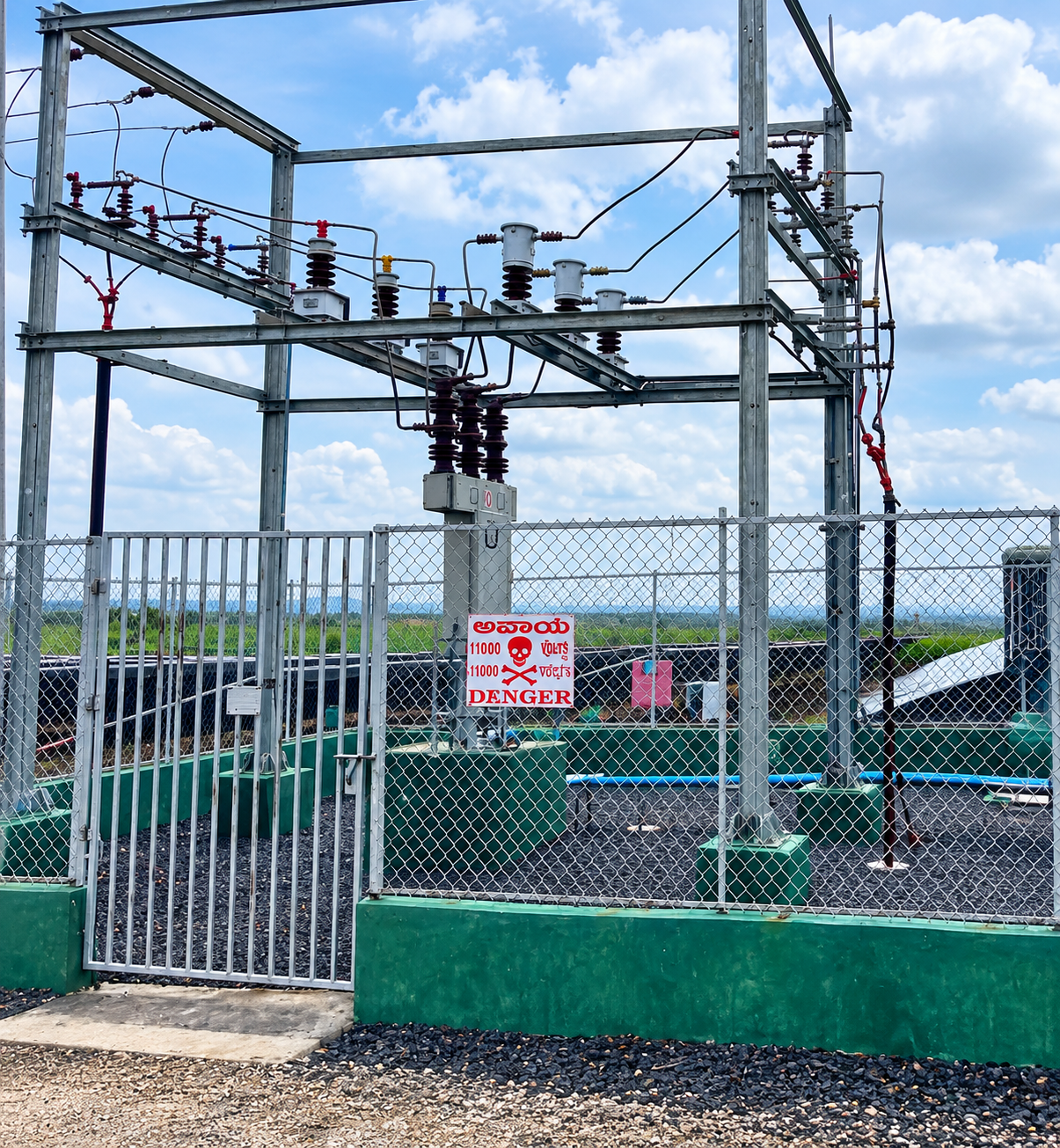

Small Grid 11KV
Electrical distribution infrastructure associated with the 11KV side of the project and its connection to the wider system.
04

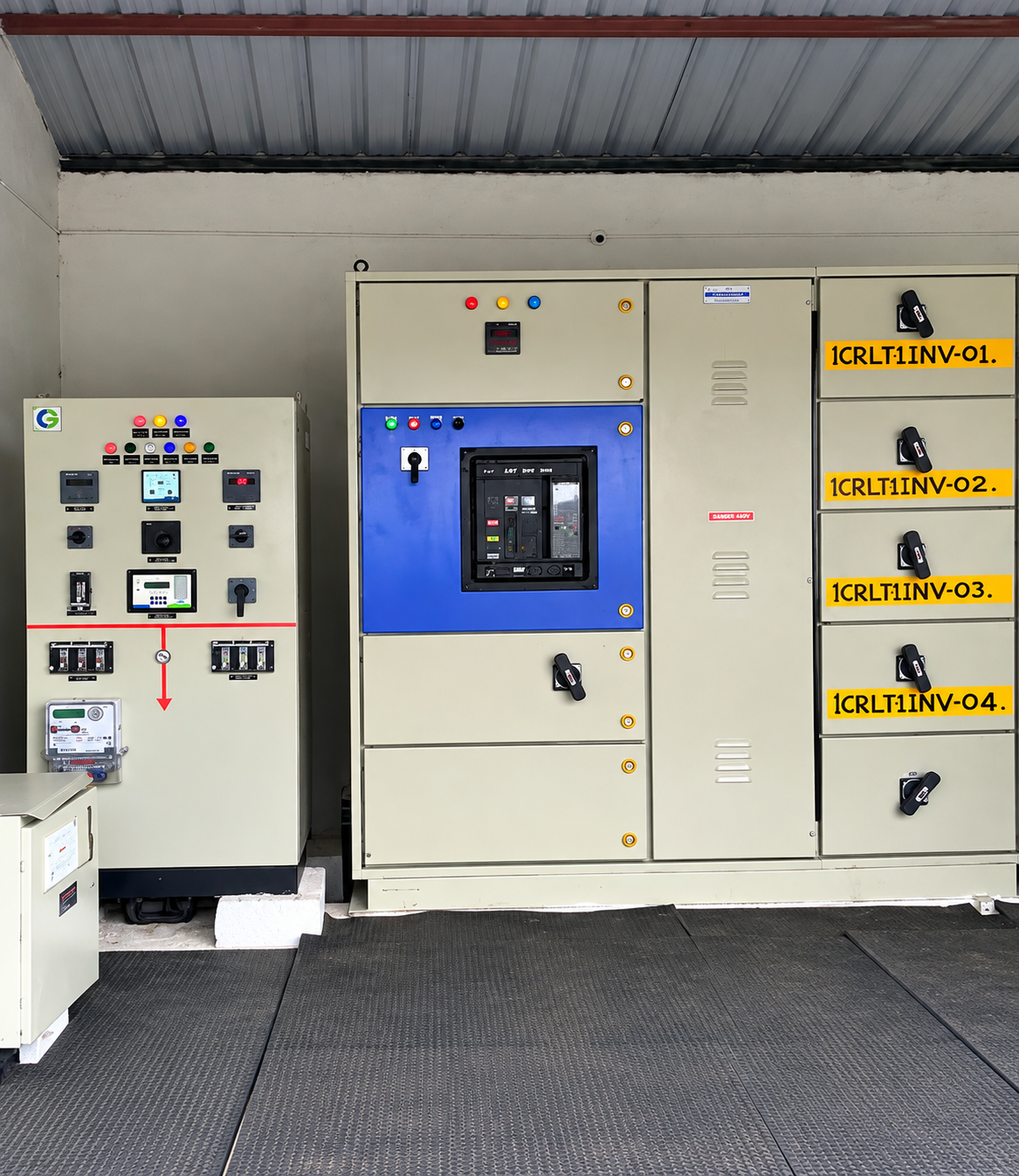

LT Panel Room
A dedicated low-voltage electrical area for panel equipment, distribution and control of connected systems.
05

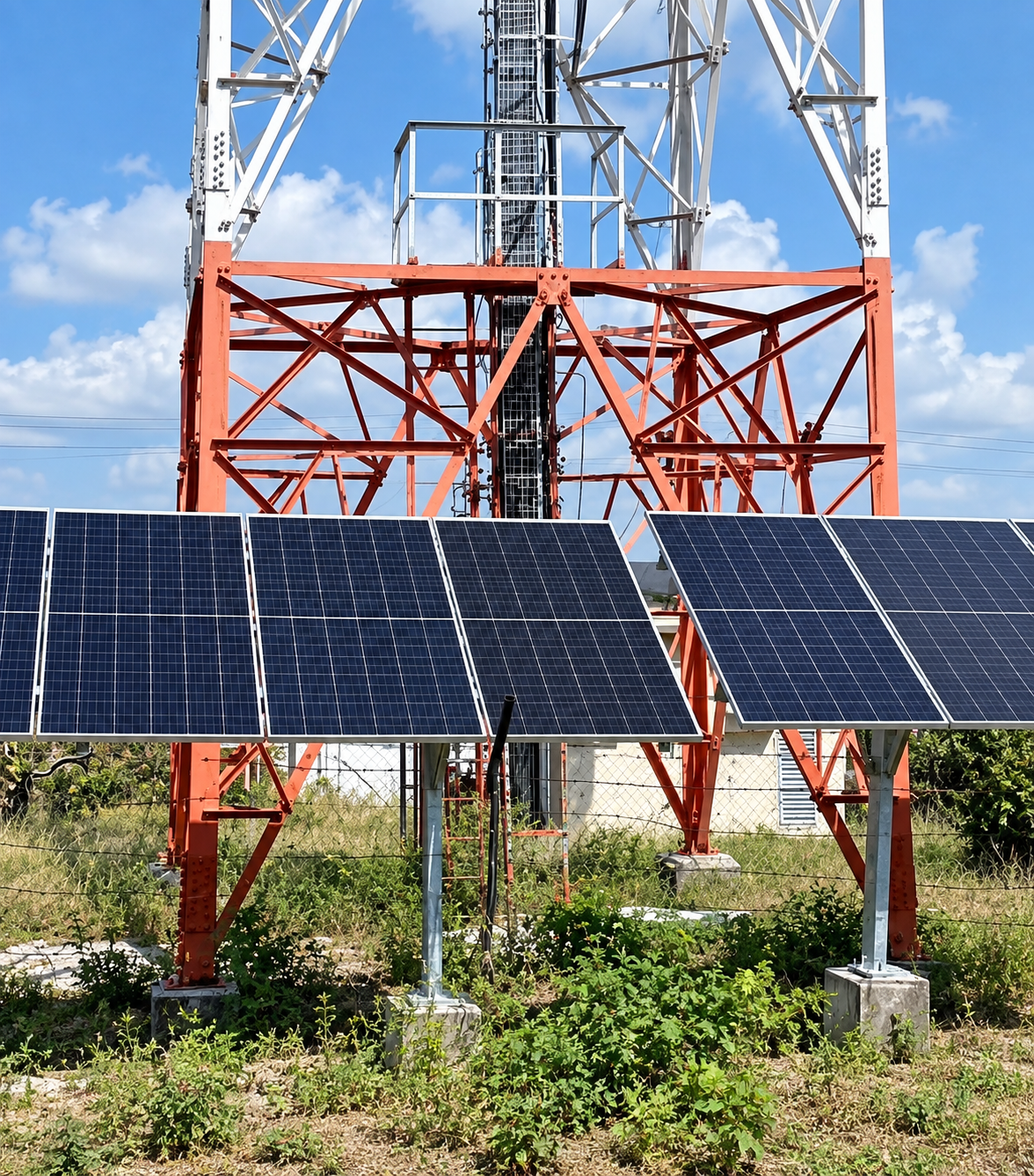

Solar Tower Plant
Supporting solar-plant infrastructure that forms part of the project's larger generation and electrical arrangement.
06

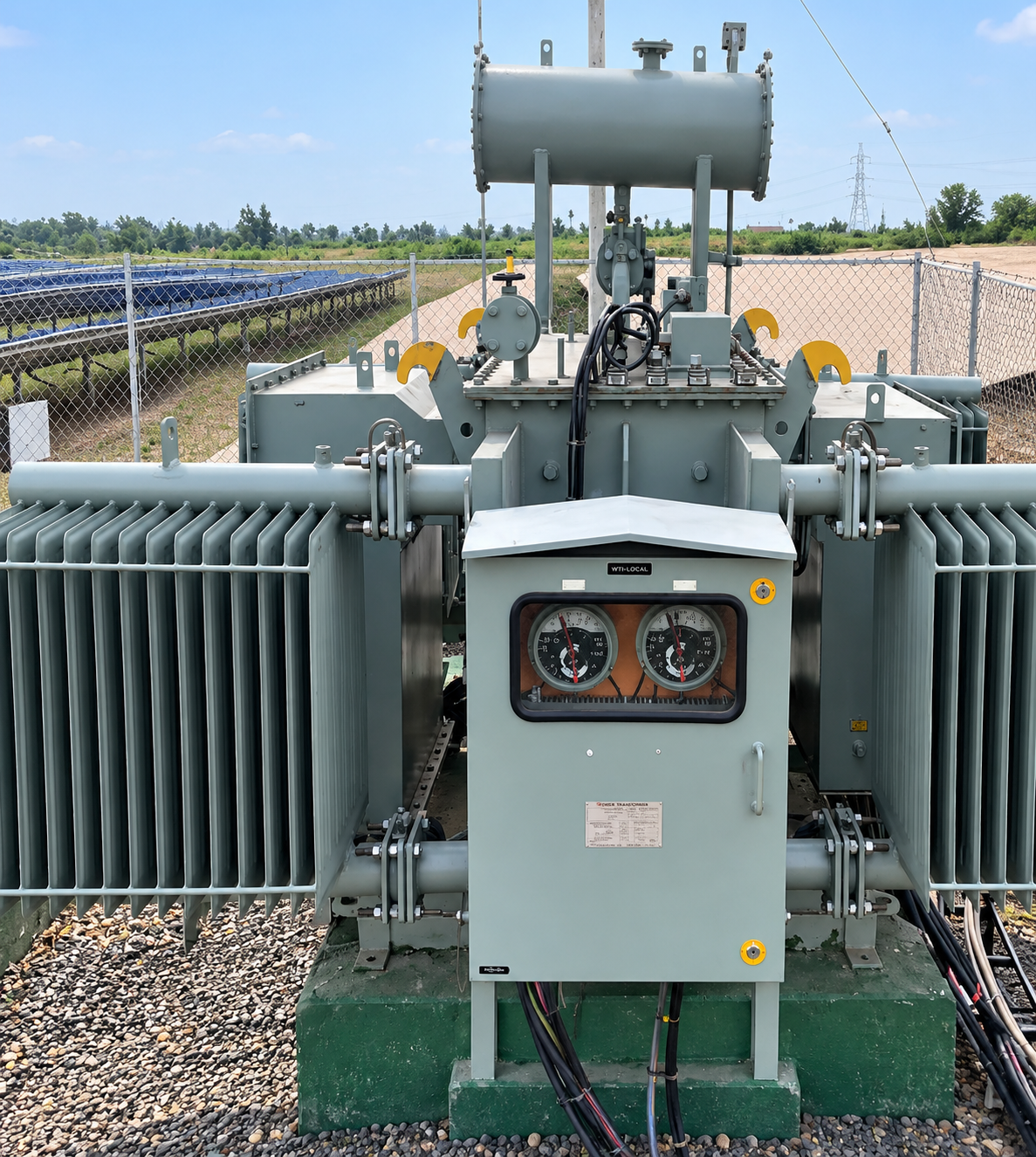

1250 KV Transformer
Transformer infrastructure used to transfer electrical energy between voltage levels within the project system.
07

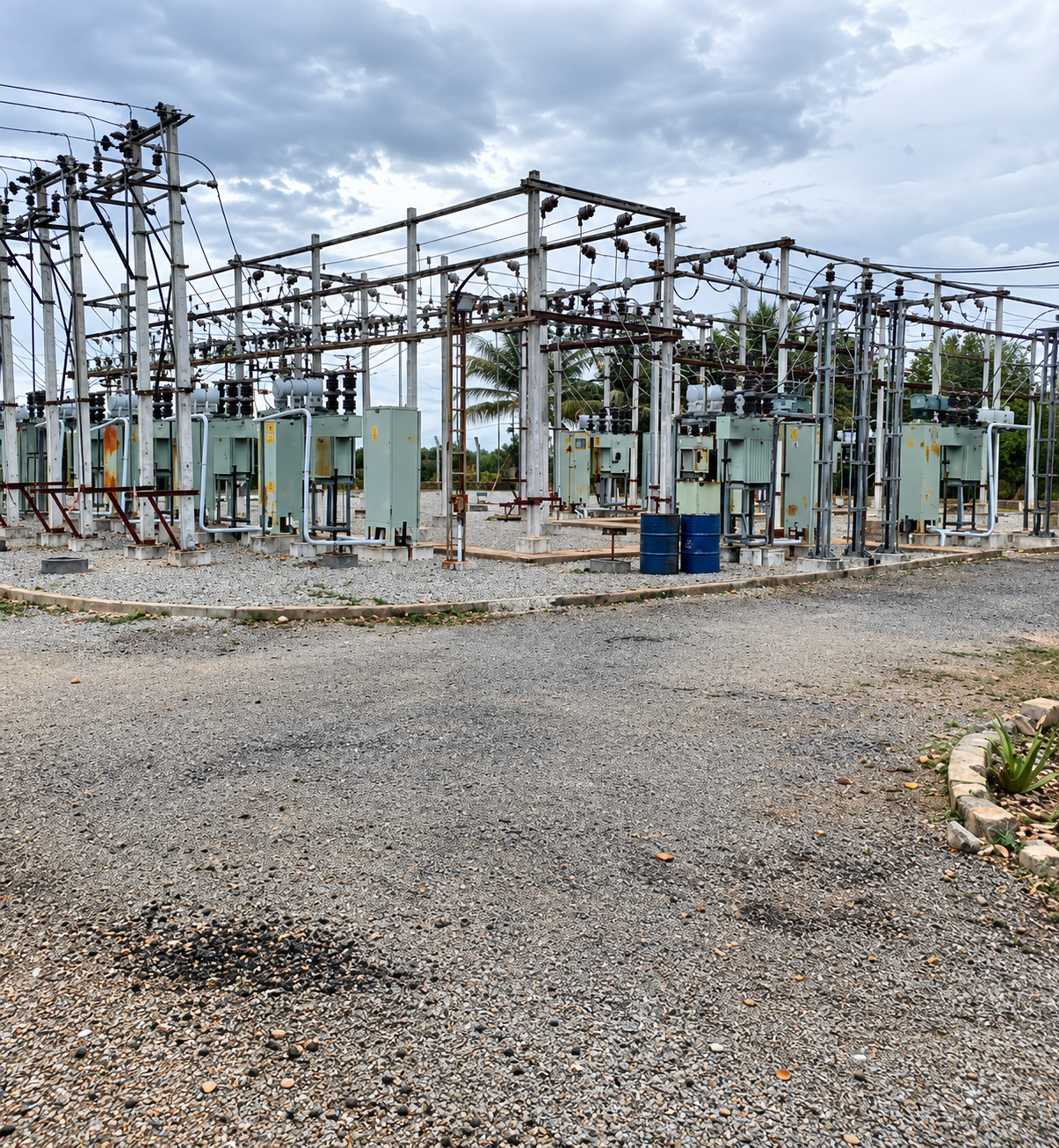

110 KV Power Station
High-voltage power-station infrastructure supporting the project's electrical transmission and grid-side connection.
08

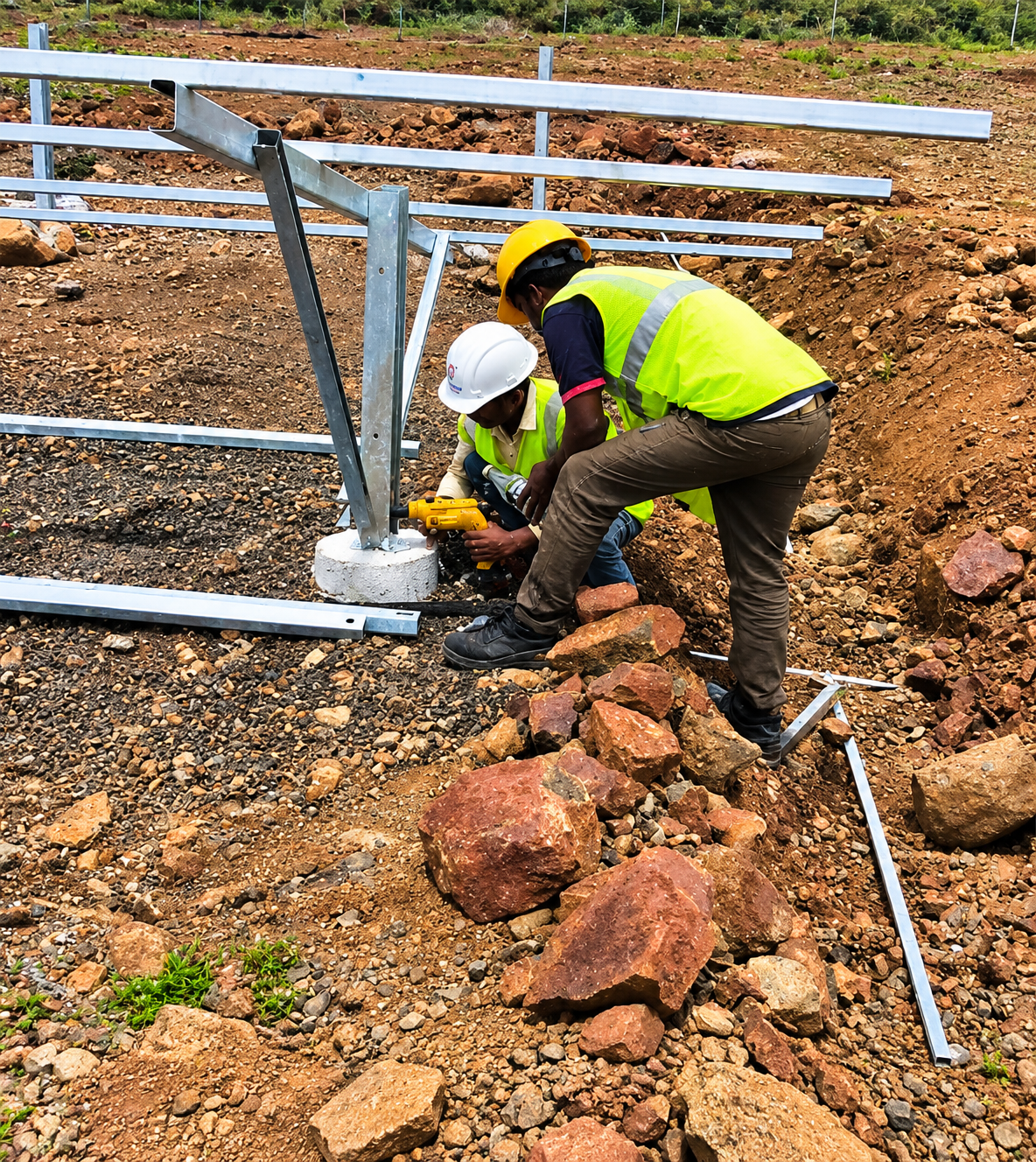

Solar Structure Work
Structural work that supports and positions the solar modules across the ground-mounted installation.
09

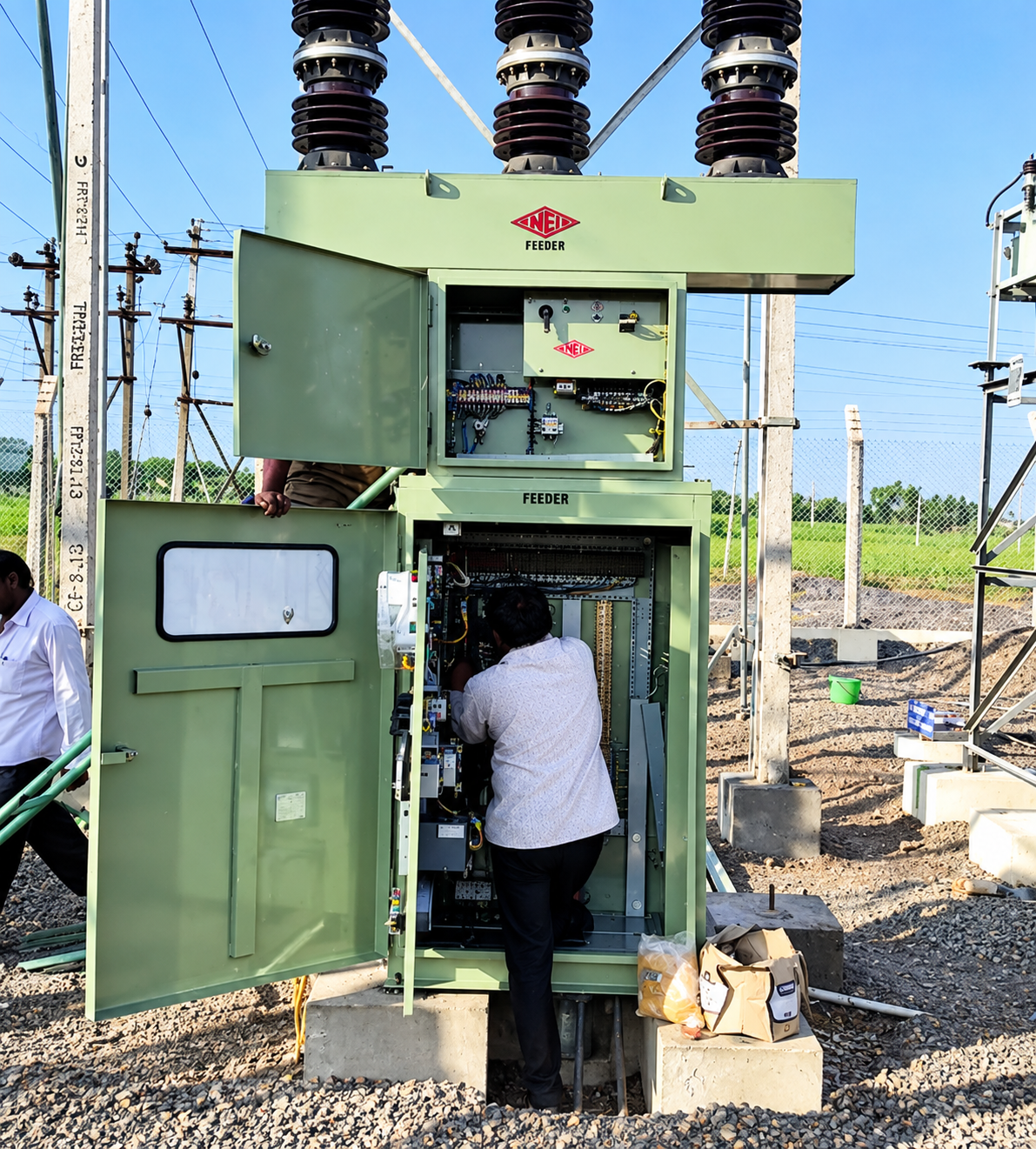

Switch Gear
Switching and protection equipment used to control, isolate and manage electrical circuits within the installation.
Ground-mounted solar work
Solar-field and infrastructure imagery keeps the service page connected to the practical nature of the work.
